Conical Twin Screw Barrel: Ta'iala atoatoa i Fa'amatalaga, Talosaga & Filifiliga

2026-08-05 0 Tuu mai ia te au se savali

E ala i leNanhaiya Technical Team— Screw & Barrel Engineering, Zhoushan · Iloiloina mo le saʻo o falegaosimea · ~10 min faitau

Tali vave

O se pa'u sikulima konikika ose mea fa'apipi'i fa'apipi'i, fa'amea masaga fa'apipi'i lea e fa'ata'amilo ai fa'a sikulima se lua i totonu o se paelo fa'atusa. O le fa'asologa fa'ameamea e maua ai le fafaga malosi ma le fa'amalosi maualuga i se pu'upu'u umi, o le mafua'aga leasikulima masaga conical ma le paeloo le filifiliga masani mo paipa PVC, talaaga otooto, laupepa ma WPC extrusion.

Afai e te faʻatautaia se laina PVC poʻo laupapa-palasitika, o lepa'u sikuli masaga conicalo se tasi o vaega e sili ona sa'o e filifili ai lau gaosiga, fa'afefeteina lelei ma tau fa'agaoioiga. Filifili le lapo'a sese, meafaitino po'o le kilia ma e te totogia i le ofuina, otaota ma le taimi malolo. O lenei ta'iala o lo'o fa'aalia ai le fa'aogaina o se paelo sikulima, fa'amatalaga e taua pe ae fa'atau, pe fa'apefea ona ese mai sepaelo sikuli masaga tutusa, ma le auala e filifili ai, faʻapipiʻi ma tausia se tasi - tusia mai le vaaiga a se fale gaosi oloa e faʻaaogaina nei vaega i aso uma.

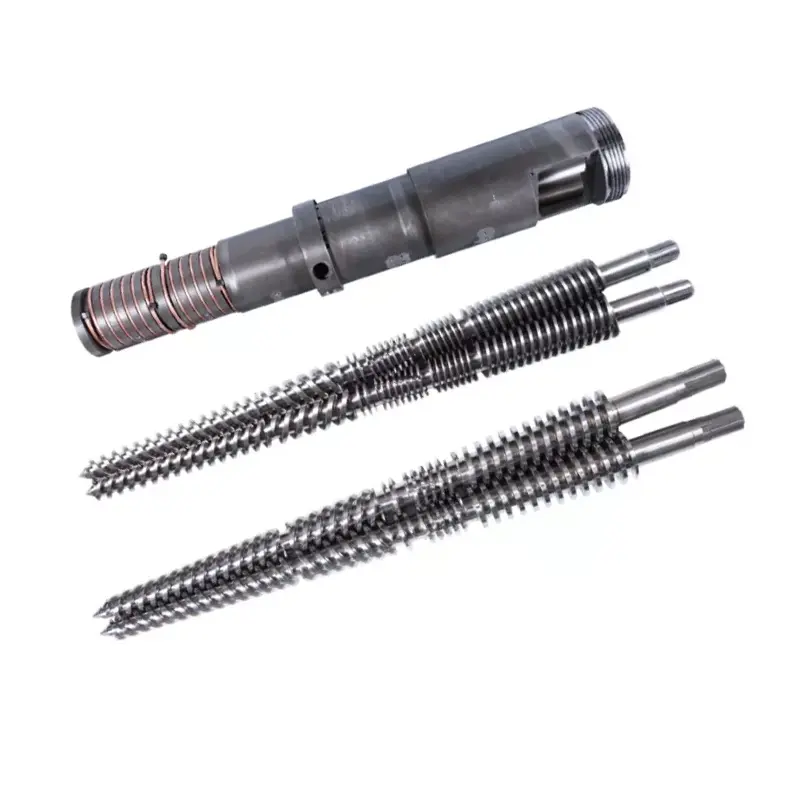

Conical twin screw barrel manufactured by Nanhaiya — O se fa'a sikuila masaga conical ma se seti paelo - o pu fa'apipi'i e maua ai le fa'amalosi pu'upu'u lelei mo le PVC fa'afefe vevela.

E fa'afefea ona fa'aogaina se paelo sikuli masaga conical

I le aextruder siku masaga conical, e lua fa'a sikulila e nonofo fa'atasi i se la'ititi la'ititi, lautele i le pito fafaga ma vaapiapi i le pito oti. O le paelo e fa'apipi'i e fa'atusa. A'o fealua'i mea mata mai le sone fafaga lapopo'a i le sone mita mita laiti, o le voluma fa'iti'iiti e fa'apipi'i ma palasitika a'o felauai ma fefiloi va'alele va'ava'ai. Talu ai ona o le fa'afeagai o fa'ailo e lua ma feso'ota'i atoa, o le sikulima masaga lua ma le paelo e toetoe lava a pei o se pamu fa'alelei lelei - fa'amautu le gaosiga i lalo, malu malu, e puipuia ai polymers fa'afefe vevela pei o le PVC.

O le faagasologa e vaevaeina i ni vaega se tolu:

Fafaga & momoli- o le tele o le fafaga fa'ai'u pito e maua ai le tele o le fa'aaogaina, o le mea lea e fa'afefiloi ai le pauta ma mea maualalo (pei o le PVC dry-blend) e tosoina ma le fa'atuatuaina e aunoa ma le fa'apipi'iina.
Fa'amau & fa'a'i'ila- o le taper e faʻaitiitia ai le leo o le alalaupapa i luga o le umi, faʻapipiʻi mea, ave i fafo le ea ma faʻafefeteina e ala i le tuʻufaʻatasia o le vevela ma galuega faʻainisinia.
Fua & lafoaia- o le vaapiapi vaapiapi sone e fausia ai se mamafa mautu ma tulei se toniga, faʻafefete tutusa i totonu o le mate i se fua faʻatonutonu.

E tele atu mea e fai e le paelo nai lo le fa'anofoina o fao. O lo'o tauaveina sone fa'avevela ma fa'alili o lo'o taofia vaega ta'itasi ile vevela sa'o. O paelo Nanhaiya e fa'aogaina le tele-sona fa'avevela ma fa'alili - e masani lava ona fafaga, fa'amalosi ma sone homogenization - fa'atasi ai ma le fa'amalo fa'amalo e toso mai ai le susu ma le fa'afefe mai le liusuavai, lea e taua mo mea fa'atumu ma hygroscopic.

Fa'amatalaga autu e siaki ae e te le'i fa'atau

E lua paelo conical e mafai ona foliga tutusa ma e matua ese lava le faatinoga. O faʻamatalaga ia e filifili ai le fetaui, gaosiga ma le ola ola - o numera e tatau ona e faʻamaonia i luga o soʻo se upusii.

Mea fa'apitoa	O lona uiga	Aisea e taua ai
Fuafuaga o le lapoa	O le fafaga-mu'u / oti-pito lautele, eg. 45/90, 50/105, 55/110, 65/132, 80/156, 92/188 mm	Seti le vasega o masini ma le vaega fa'aulu - e tatau ona fetaui tonu ma lau fa'ata'ita'iga extruder
L/D fua faatatau	Fa'atino lelei umi ma le lautele	Umia aoga umi = sili atu taimi nofomau mo fusuaga atoa ma degassing
Meafaitino togi	38CrMoAlA u'amea nitrided, W6Mo5Cr4V2, HIP pauta uamea, po'o le bimetallic	Tu'u sa'o le fa'aogaina o le ola ma le fa'a'ele'ele mai mea fa'atumu/PVC
Togafitiga i luga ma le maaa	Nitriding, chrome plateing, bimetallic alloy po'o le tungsten-carbide spray	Na fa'asusu e Nanhaiya se mea fa'apipi'i fa'apipi'i tungsten e o'o atu ai62 HRCtotonu ole paelo ma le 58 HRC masani
Alloy layer loloto	O le mafiafia o le fa'alava totonu e fa'alavalava	E 2.5–3 mm le pito lua a Nanhaiya—o se vaega loloto o lona uiga o se faamalama o auaunaga umi atu
Kilia le siu/paila	O le va i le va o le pito o le vaalele ma le puipui fa'amau	Tele tele = mamafa gau ma maualalo le gaosiga; ose va fufusi, sa'o sa'o e fa'atumauina ai le lelei maualuga
Fa'apalepale/fa'asa'o	Sa'o lelei o masini o le vaega ua mae'a	O Nanhaiya o lo'o u'u pa'u masaga conical i le ±0.0005 mm mo se fa'afetauiga faifaipea
Gaosi mea e maua (kg/h)	Fa'avasegaina le fa'aogaina mo le tele	Ole numera ole fa'atauga pito i lalo - fa'afetaui i lau laina saoasaoa ma lau oloa

Fa'amatalaga lautele alamanuia:fa'ailoga lapopoa conical e pei ole 45/90 po'o le 65/132 (fafaga/mate diameter i mm) e taatele i SJZ-ituaiga masini conical, o lea o se paelo ua faamaoti mai i lenei auala e masani ona fetaui ma se extruder o iai. Fa'amaonia i taimi uma se ata po'o se fa'ata'ita'iga a'o le'i oka. E mafai ona e vaʻai i lapopoa masani i la matoupa'u sikuli masaga conicalitulau.

Conical vs tutusa twin screw paelo

Ole fesili masani a tagata fa'atau e fesili pe latou te mana'omia se conical po'o sepaelo sikuli masaga tutusa. O mea uma e lua e lua-screw, intermesh uma - ae o le geometry e fetaui ma galuega eseese. I se faapuupuuga: sili conical i tuusao PVC / WPC extrusion o paipa, talaaga otooto ma laupapa; e sili atu le malosi o le parallel mo le faʻapipiʻiina, masterbatch ma faʻapipiʻi maualuga tele.

Fa'ailoga	Pa'u fa'aisi fa'ailoga masaga conical	paelo sikuli masaga tutusa
Fafaga amio	Tatala fafaga lapopoa - sili atu le taumafa mo le pauta maualalo-tele	Fa'ato'aga fafaga mo le fa'afefiloi ma pellet fafaga
Fa'amau	O'omiga maualuga ua fausia i totonu o le fa'ailoga fa'ai'opo	Sili atu fa'amalosi fa'aauau i luga o le lautele fa'amautu
Avela/sele	Fa'alelei, pulea lelei - lelei mo PVC fa'afefe vevela	Silia maualuga - sili atu mo le faʻafefiloi malosi ma faʻasalalau
Fa'aoga masani	PVC paipa, talaaga otooto, pepa, WPC, resin tile	Masterbatch, tuufaatasia, maualuga-CaCO₃ ma galuega e tumu i tioata
Tausiga	La'ei ma kilia e mana'omia le mata'ituina lelei ile taper	E masani ona faigofie le fa'avasegaina o le geometry ma le suia o elemene

O se tulafono aoga o lima matua: pe afai o lau oloa faaiuoo le extrudate (se paipa po o se laupapa saʻo mai le mate), o se conical masaga sikulima paelo e masani lava o le meafaigaluega saʻo. Afai o lo'o e faia pelleti pe fa'asalalauina se afifi fa'aopoopo fa'aopoopo, va'ai i se paelo sikulima masaga fa'atusa - ae maise lava le ituaiga fa'asagatau mo uta maualuga kabone. Le mautinoa po o fea e fetaui ma lau laina? O tatoufa'ato'a fa'ailoga, kosi ma laina tutusa o loʻo faʻaalia uma i luga o leitulau oloa.

Talosaga masani

Talu ai e tuʻufaʻatasia le fafagaina malosi, faʻamalosi maualuga ma sele malu, o le sikulima masaga conical ma le paelo o le workhorse o malo-PVC ma laupapa-palasitika extrusion. E sili ona lelei mo:

PVC paipa- sapalai vai, alavai ma paipa paipa mai le PVC fa'afefiloi mago.
PVC talaaga- fa'amalama ma faitoto'a fa'amatalaga, fa'amau fa'ai'u ma teuteu.
laupapa PVC & laupepa— laupapa foam, pepa maamora foliga ma laupapa foa'i fua (silasila i le matouPVC laupapa conical masaga sikulima paelo).
WPC (fa'apipi'i laupapa-palasitika)- fa'aofuofu, puipui puipui ma tala'aga mai fa'aputu fa'atumu fafie.
mea fa'avae PE ma resin-tile- e aofia ai maa fa'a'a'au fa'a'ele'ele taualuga ma PE-tumu fa'amatalaga.
PVC pelletizing- liliu le PVC fa'afefiloi mago i granules mo le fa'aoga i lalo.

PVC board conical twin screw barrel for foam and marble sheet extrusion — Fa'ato'a fa'ato'a pa'u fa'amasani fa'amasani mo le laupapa PVC ma le fa'a'ese'ese o le foam-sheet.

E fa'afefea ona filifili le pa'u sikuli masaga conical sa'o

Filifiliga e sau i lalo i fesili e tolu: o le a le mea o loʻo e faʻaogaina, o le a le mea e te manaʻomia, ma le faʻafefe o lau faʻavae? Fa'aoga le matrix o lo'o i lalo e fai ma amataga, ona fa'amaonia lea o le tele sa'o i lau masini.

Au mea / mana'oga	Fuafuaga fautuaina	Filifiliga i luga / meafaitino
Pipa PVC ma'a'a & fa'ailoga	Fa'ata'ita'iga conical fa'ata'atia e fa'atatau i lau fa'ameamea (fa'ata'ita'iga 55/110, 65/132)	Nitrided 38CrMoAlA mo PVC mama, maualalo faʻatumu
PVC + maualuga CaCO₃ faʻatumu	Conical fa'atasi ai ma sone fa'aofuofu fa'amalosi, po'o le la'a i luga i le fa'asaga tutusa	Bimetallic / tungsten-carbide layer (62 HRC) mo le abrasion
WPC / fa'apipi'i fa'alava-fafie	Conical ma le malosi e savili ma ofuina puipuiga	Bimetallic - alava fafie + faatumu e matua abrasive
PVC foam laupapa / pepa	Fa'alogoina fa'amau mo le fa'atonutonuina o le vevela o le liusuavai ma le mamafa mautu	Nitrided po'o le bimetallic fa'alagolago ile maualuga ole fa'atumu
Tulaga maualuga i tulagavae tutusa	Ole fua fa'atatau ole lautele ma/po'o le umi ole umi aoga	Fa'afetaui le maaa ma itula ta'avale ma uta fa'atumu

Po o le a lava le tali, o le laasaga e tasi e sili ona taua o le fetaui ma le paelo i lau masini o loʻo iai. O vaega conical e masani lelei i le extruder latou te tamoe i totonu, o lea o se ata - poʻo se faʻataʻitaʻiga faʻatasi ai ma itu taua (fafaga / oti le lautele, mamao ogatotonu, umi atoa ma faʻamatalaga flange) - e mafai ona tatou sii maia se sui saʻo-saʻo nai lo se "latalata" vaega. Afai e te manaʻomia le laina atoa nai lo le vaega, matou te fausia foimasini extruder atoatoa.

Fa'apipi'i ma fa'avae uaea

O se paelo sa'o e fa'atino pe a fa'apipi'i sikuea, mama ma fa'asa'o lelei. O laasaga o loʻo i lalo o se vaʻaiga lautele - mulimuli i taimi uma i lau masini fau tusi tusi ma taʻaloga loka.

Malosi i lalo ma loka i fafo.Fa'ate'a ese le ta'avale ma mea fa'avevela uma a'o le'i aveese le paelo tuai. Fa'amaonia le leai o le malosi ae e te le'i amataina.
Fa'amama foliga fa'aipoipo.Aveese sealant tuai, carbon ma burrs mai flanges ma su'e foliga ina ia nofo ai le paelo fou e aunoa ma se fa'alavelave.
Fa'amau ma fa'aoga.Fa'apipi'i le paelo fa'amau i le atigipusa/fa'ameamea, siaki le fa'atotonuga ma ia fa'aliu sa'o le fa'avili i lima a'o le'i fa'aogaina le paoa.
Uaea sone faavevela.Toe fa'afeso'ota'i mea fa'avevela ma fa'alili i le sone (fafaga → compression → mita), ma fa'alua fa'ameamea ta'itasi i le ala sa'o e pulea ina ia leai se sone e feso'ota'i.
Seti se talaaga fa'asusu.Fa'atu le paelo i le vevela lemu ma fa'asusu i le sila ma fa'afefeteina ae e te le'i amataina le fa'avili - amata ai le malulu e ono fa'aleagaina ai.

Fautuaga o sone vevela:fa'amalie le sone fafaga ma la'a i luga le vevela i le pa'u. O sone e le tutusa pe fa'asalaina ose tasi lea o mafua'aga masani o le si'isi'i ma le lanu uliuli - e tatau ona siaki fa'alua pe a mae'a suiga o paelo.

Fa'afitauli ma ofuina

O le tele o fa'afitauli paelo e fa'ailoa mai o latou lava e le mautu, fa'avevela po'o mea leaga. Fa'aoga le laulau lenei e fa'atopetope ai mai fa'a'ailoga e ono mafua ai ona toe fa'aleleia.

Fa'ailoga	Atonu e mafua ai	Fa'atonu
E fesuisuia'i / fa'atupuina	Fafaga le fetaui, va'alele vaivai, po'o le vevela o le vevela	Siaki mea'ai, fa'amaonia le vevela o le sone, fua le kilia o sikulima/paila
Ova le vevela	E le paleni le fa'avevela, fe'ese'esea'i tele, po'o le maalili ua poloka	Su'esu'e sone ta'itasi ma ta'amilosaga malulu; toe fa'afanua thermocouple
Le lelei le fa'apipi'iina	Sese le seti sikulima po'o se pa'u paelo masaesae	Fa'amaonia le fa'atulagaina; siaki mo le kilia tele mai le ofuina
Laina uliuli / laina	O mea mate o lo'o uuina ai mea leaga, po'o ni togi	Faʻamama ma faʻamama lelei; su'esu'e le va'a ma le fa'avili
La'ei tele/vave	Fa'atumu abrasive, le lelei le tausiga, po'o le maaa o lalo ole fa'amatalaga	Fa'aleleia i se paelo bimetallic / tungsten-carbide; fa'amalosi le tausiga

O laei e masani lava - o le sini o le faʻagesegese ma faʻamaonia. O mea fa'atumu (CaCO₃, alava laupapa, tioata) e sili ona osofa'ia le va'a ma va'alele, ma o le mea tonu lava lea e totogi ai e se vaega loloto, malō mo ia lava. O le 62 HRC fa'aopoopo i luga o le tungsten e sili atu ona umi e fa'asaga i na fa'aputuga nai lo le fa'auma masani 58 HRC, fa'alautele le va i le va o le toe fau.

Lisi siaki tausiga

O siaki masani pupuu e puipuia ai le taugata. Fausia mea nei i lau masani:

Vaeluaga	Siaki	Gaioiga
Soo se sifi	Sone vevela & amps	Faitauga o ogalaau; su'esu'e so'o se fa'ase'e mai le laina fa'avae
Vaiaso	Lelei liusuavai & mae'a luga	Va'ai mo fa'ailoga fou, gels po'o suiga o mea e gaosia
Ta'i masina	Fa'amama & va'ai va'a/siu siaki	Faʻamama nofoaga mate; va'ava'ai mo sikoa po'o le fa'ailoga
Kuata	Kilia le siu/paila	Fua le va; fa'atusatusa i fa'amatalaga e siaki le fua o le ofuina
Pe a manaomia	Fa'avevela ma le thermocouple amiosa'o	Suia fusi/seni ua le manuia a'o le'i mafua ai le leaga o oloa

Fesili e fai soo

O le a le paelo sikuli masaga conical?

Ose vaega fa'amea fa'amea masaga fa'a'opo'opo lea e fa'ata'amilo ai fa'a sikulima se lua i totonu o se paelo fa'atusa. O le taper compresses ma plasticizes mea i luga o se umi puupuu, faia le conical sikulima paelo lelei mo PVC paipa, talaaga otooto, laupepa ma extrusion WPC.

O a mea e fa'aoga lelei ai?

PVC malo (paipa, fa'amatalaga, laupapa ma laupepa), laupapa-palasitika tu'ufa'atasi, fa'amatalaga fa'avae PE ma ta'i resini, fa'atasi ai ma pelletizing PVC. Na te fa'aogaina pa'u fa'afefiloi matutu-maulalo-maualalo aemaise lava fa'afetai i le tele o mea'ai fa'ai'u.

E fa'afefea ona ese mai se paelo sikulima masaga tutusa?

Ose paelo fa'amau ma fau le fa'amalosi maualuga ma sele malu, fa'afetaui sa'o PVC/WPC extrusion. Apaelo sikuli masaga tutusae fa'atumauina pea lona lautele ma sele maualuga, e fetaui lelei i le fa'afefiloi, masterbatch ma fa'atumu maualuga tele.

O le a le kilia masani i le va o sikuli ma le paelo?

O le kiliaina o le va itiiti lea i le va o le pito o le vaalele ma le pa puipui. Ua fa'apipi'i mau ma sa'o i se vaega fou; a'o matala i luga mai le ofuina, gaosiga ma le pa'u o le mamafa. O le fuaina mai lea taimi i lea taimi o le auala sili lea ona manino e siaki ai le ofuina o paelo.

E fa'afefea ona ou fa'apipi'i se pa'u sikula masaga conical?

Malosi i lalo ma loka i fafo, fa'amama foliga fa'aipoipo, fa'anofo ma fa'aoga'i ina ia mafai ona liliu sa'o le fa'avili, uaea sone fa'avevela ta'itasi ma le thermocouple sa'o, ona fa'ae'e lemu le paelo i le vevela ma fa'asusu a'o le'i amataina fa'avili.

O le a le mea e mafua ai ona ofuina i paʻu sikuli masaga conical?

Fa'atosina abrasive fillers e pei o le calcium carbonate, fiber fafie ma tioata, e sili atu ona leaga e ala i le pala mai le gaosiga o le PVC, le lelei o le tausiga ma le maaa. E sili atu le loloto o le bimetallic poʻo le tungsten-carbide layer e tetee atu ai i mea uma e tolu.

E fa'afia ona asiasia pe sui le paelo?

Fai siaki va'aia ma fa'amama i masina ta'itasi ma fua kilia ta'i kuata. O le taimi e sui ai e fa'alagolago i le fa'atumu o uta ma itula ta'avale - siaki le faiga o la'ei nai lo le fa'atali mo se fa'aletonu, ma toe fau pe sui pe a o'o atu le kilia i tua atu o fa'amatalaga.

E fa'afefea ona ou filifilia le lapo'a sa'o mo la'u laina fa'aola?

Fa'afetaui le fua fa'atatau o le lautele ma le umi i lau fa'ata'ita'iga extruder ma le fa'amoemoega o mea e fai, ona filifili lea o se togafitiga i luga ole laiga e fa'atatau i le fa'afefeteina o lau fau. Auina atu se ata po'o se fa'ata'ita'iga e iai fua fa'atatau ina ia fetaui tonu le paelo, ae le o se fa'atatau.

Mana'omia se pa'u sikula masaga conical e fetaui ma lau masini?

Auina mai ia i matou lau ata - poʻo se faʻataʻitaʻiga e iai fua faʻatatau - ma o matou inisinia o le a faʻamaonia se faʻailoga masaga masaga ma le paelo e fetaui tonu ma le maaa saʻo mo au mea. Faatasi ai ma le faʻaogaina o le nitriding i totonu o le fale, bimetallic ma tungsten-carbide, matou te fausia vaega e oʻo atu i le 62 HRC i totonu o le pa mo le umi o le ola tautua.

Maua se upusii i totonu ole 12 itula →
